- Ten-layer PCB
- Home Page > Process Capability > Ten-layer PCB

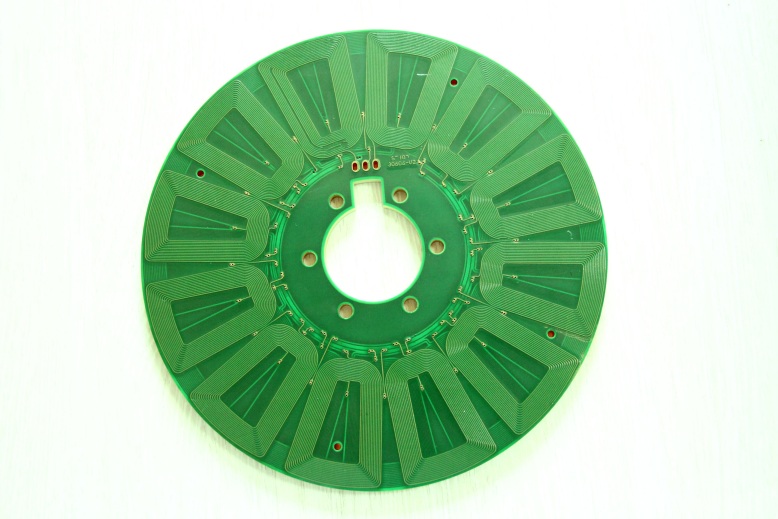

| Name | 32-layer motor spindle PCB |
| Technology | FR-4 5.8mm Green ink OSP CNC |
| Min. line width/space | 0.2mm/0.2mm |
| Min. holes diameter | 0.5mm |
| Outside dimension | 200mm*200mm |

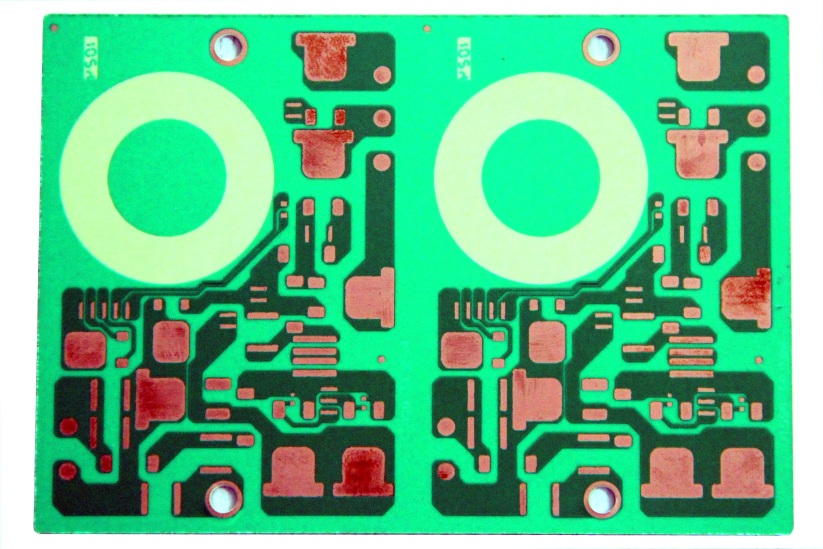

| Name | Aluminum substrate PCB |
| Technology | Aluminum substrate 0.6mm Green ink OSP CNC |
| Min. line width/space | 0.15mm/0.15mm |
| Min. holes diameter | 5mm |
| Outside dimension | 130mm*90mm |

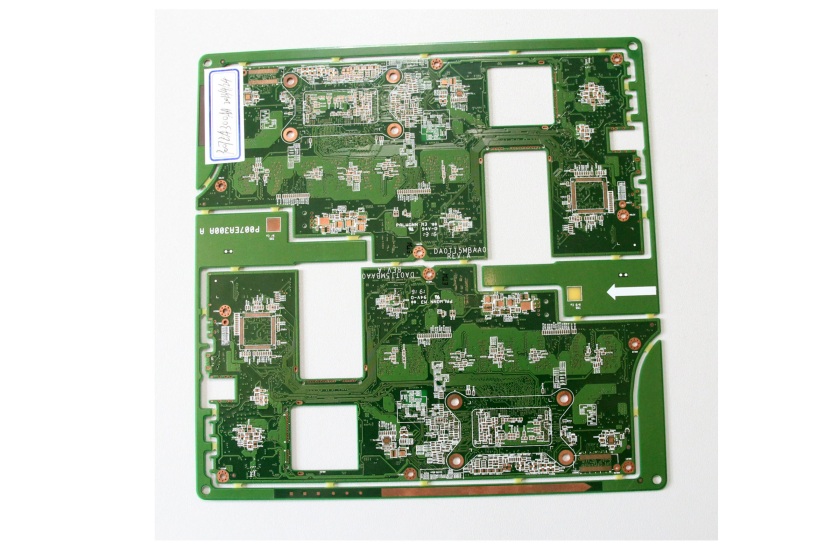

| Name | Ten-layer NB PCB |
| Technology | FR-4 1.0mm Green ink OSP CNC |
| Min. line width/space | 3mil/3mil |
| Min. holes diameter | 0.25mm |
| Outside dimension | 225mm*225mm |
